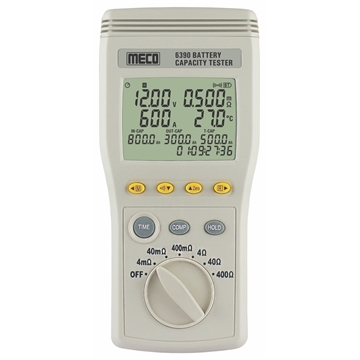

BATTERY CAPACITY (IMPEDENCE)TESTER (UPTO 1200 Ah & 60V) (MODEL : 6390)

Features :

Memory & Read Function
Right Device to know the TRUE -LIFE of Battery Capacity (Resistive / Voltage / Current & Temperature) Simultaneously
On - Line Testing without shutting down battery
Built - in Comparator Function
Measure Battery Charge / Discharge Capacity (Ah)
Measure Battery State of Charge SOC (%)
Rates Conditions as PASS, WARNING or FAIL
Auto Datalogging Micro SD Card 4GB upto 99 Blocks
Compact and lightweight
USB Interface & Software
Load Test Analysis (Charge / Discharge)
Auto-Hold & Auto-Data Storage
Wide Range 0 ~ 1200 AH
Auto Power Off

Battery Types Tested

UPS Batteries
Compact Storage Batteries
Backup Battery
Battery Pack
Biobattery
Car Battery
CMOS Battery
Electric Vehicle Battery
Flow Battery
Inverter Battery
Lantern Battery
Nanobatteries
Photoflash Battery
Thin Film Rechargeable Lithium Battery
Traction Battery
Watch Battery
Water-Activated Battery
Wet Cell
Alkali and Lead-Acid Batteries
Motor Cycle (6V/12V : 2 ~ 20Ah), Car (12V : 21 ~ 80Ah),
Truck (12V : 83 ~ 160Ah)
Household Appliances [(9V : upto 625 mAh), (AA : upto 2850 mAh), (AAA : upto 1250 mAh),
(C : upto 8350 mAh), (D : upto 20500 mAh)],
Lithium Notebook Battery : [(14.8V : 3600 ~ 4800 mAh),(11.1V : 3600 ~ 7200 mAh)],
Lithium Digital Camera Battery : (3.7V : 650 ~ 1350 mAh),
Lithium Cordless Phone Battery : (3.7V : 800 ~ 1250 mAh)
All Types of Lead Acid Batteries

Resistance

Range : 4mΩ, 40mΩ, 400mΩ, 4Ω, 40Ω, 400Ω
Resolution : 1μΩ, 10μΩ, 100μΩ, 1mΩ, 10mΩ, 100mΩ
Accuracy : ± (0.8% rdg + 6 Digits) on all ranges except ± (3% rdg + 20 dgt) on 4mΩ

DC Voltage

DC Current

Temperature

Accessories
