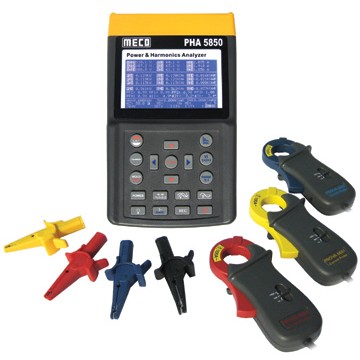

Power and Harmonics Analyser (Model : PHA5850)


Power and Harmonics Analyser (Model : PHA5850)
CE Certified  Software
Download Manual Online Download Catalog Product Certifications Enquiry
Models : PHA 5850A, PHA 5850B, PHA 5850C, PHA 5850D
Features :
  • Analysis of 3P4W, 3P3W, 1P2W, 1P3W Systems
  • Display of 35 Parameters in one screen (3P4W)
  • Programmable CT (1 to 600) and PT (1 to 3000) Ratios
  • RMS, PEAK Value & Crest Factor
  • True RMS value, Active Power, Apparent & Reactive Power ( KVA, KVAR)
  • Power Factor, Phase Angle ( ? ) & Energy (WH, KWH, KVARH, PFH)
  • Average / Maximum Demand (KW, MW, KVA, MVA) with Progrmmable Period
  • Display of 50 Harmonics in one Screen with Wave form with Peak value (1024 Sample / Period)
  • Analysis of total Harmonics Destortion (THD-F)
  • Capture 28 Transient Events with Programmable Threshold (%) (DIP, SWELL & OUTAGE)
  • Built in timer & Calender for Data Logging
  • 512K Memory with Programmable interval (2 to 3000 seconds, 17000 records for 3P4W Systems)
  • Optical Isolated RS-232C ~ USB Interface
  • Calculated Unbalanced Current through Neutral line
  • Graphic Phasor Diagram
  • Facility to retrieve Power Data & Harmonics on Meter Screen
  • Software for easy download of Recorded Data & Transient events
  • Graphic Phasor Diagram
  • Facility to retrieve Power Data & Harmonics on Meter Screen
  • Software for easy download of Recorded Data & Transient events

Ordering Information
  • MODEL PHA 5850A : 3 pcs (R, Y, B) Clamp - On CTs. Range : 1 / 10 / 100A AC

         Conductor size : 30mm (approx)


  • MODEL PHA 5850B : 3 pcs (R, Y, B) Clamp - On CTs. Range : 10 / 100 / 1000A AC
         Conductor Size : 55mm (approx) Busbar 64 x 24mm

  • MODEL PHA 5850C : 3 pcs Flexible CTs. Range : 300 / 3000A AC
          Probe Length : 24" / 610mm (approx), Minimum bending Diameter : 35mm, Conector  Diameter : 23mm, Cable Diameter : 14mm, Cable Length from Probe to Box : 1700mm, Cable Length from Box to Output : 1700mm

  • MODEL PHA 5850D : 3 pcs Flexible CTs. Range : 120 / 1200A AC
          Probe Length : 18" / 460mm (approx), Minimum bending Diameter : 35mm, Conector Diameter : 23mm, Cable Diameter : 14mm, Cable Length from Probe to Box : 1700mm, Cable Length from Box to Output : 1700mm
Applications

Under BEE's PAT Scheme (Perform, Achieves & Trade) it is mandated to compulsorily improve their Energy Efficiency by adopting all the available measures including replacement of their old Equipments with New and Energy Efficient Equipments. Versatile Handy instrument using micro controller technology and easy to use software program for recording and downloading. Useful for time to time monitoring of Power Parameters, Energy and Presence of Harmonics at several Locations / Mahcines. Cost Effective & Efficient Tool for Energy Auditor, Maintenance Persons, Serivce Providers, Site / Plant Engineers.
