Introduction

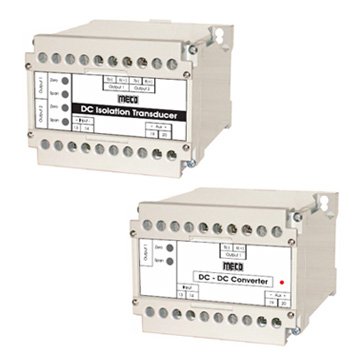

MECO DC Isolation Transducer takes various DC Voltage or DC Current signal inputs and provides a Stable, Ripple-Free and Optically Isolated DC load independent output in the form of current or voltage. The output can be connected to Controllers, Data-Loggers, PLC's, Analog / Digital Indicators, Recorders for display, analysis or control. They are ideal for SCADA, Energy Management, Telemetering for Remote, Local as well as Central Monitoring Systems. Model DTI - RRL has LED indication at Power ON condition.
Features
- Terminal Protection Cover
- Reliable & Rugged Static Circuits
- Low Ripple in Output Signal
- Flame Retardant Polycarbonate Case
- Choice of Multiple Asymmetrical Outputs
- Wide Choice of Suppressed Ranges
- Open and Short Circuit Protection for Outputs
- Dual Output (Non Isolated)
- Self-Powered, AC, DC, SMPS Auxillary Supply
- Din Rail Mounting
- Bi-Directional Outputs
- Fast Response Time
- Bi-Directional Inputs for Import / Export
Type
DIN Series / DIN Rail Mounting
DC Input
Current (mA) : 4-20 mA, 2-10 mA, 1-5 mA, 0-1 mA, 0-10 mA, 0-16 mA, 0-20 mA
Voltage (V) : 0-100 mV, 0-1 V, 0-5 V, 1-5 V, 0-10 V, 2-10 V, 0-1000 V
DC Output
Current (mA) : 0-1 mA, 0-5 mA, 0-10 mA, 2-10 mA, 0-20 mA, 4-20 mA, 4-12-20mA
Voltage (V) : 0-1V, 0-5 V, 1-5 V, 0-10 V, 2-10 V, 0-5-10V
Accuracy
Auxilliary Power Supply
SMPS - HV : 85-265V AC / DC
SMPS - LV : 19-90V AC / DC
AC Linear Power Supply : 110V AC ±20%, 230V AC ± 20%
Specifications
Response Time : < 250 ms for 0 to 90% of Output
< 1 s for 0 to 90% of Output for PF
Output Ripple : < 0.5% of Full Scale
Overload - Continuous : Voltage: 1.2 x Un, Current : 2 x In
Overload - Short Duration ( 1 sec.) : Voltage : 2 x Un, Current : 20 x In
Standards : IEC 688 / EN 60688, EN 61010-1, EN 61326-1, IS12784 (Part-1)1989
Ordering Information
Model, Input Range, Input Voltage, Input Current, PTR, Frequency, Auxiliary Supply, Output 1, Output 2 & Optionals
